FW2105
Addressable Fire Alarm Control Panel
Compact addressable control panel for smaller commercial and residential installations — single-loop, field-configurable.
Products · Maple Armor Series 2
The full Maple Armor Series 2 addressable fire alarm platform — panels, annunciators, detectors, manual stations, modules, and notification appliances, designed and manufactured in Brossard, Québec, and listed to UL, ULC, and FM standards.
Every Series 2 device is addressable, field-configurable, and designed to integrate seamlessly across the Maple Armor platform. Click any product below to open its full datasheet.
Our engineering team will walk you through loop capacity, code requirements, and device selection for your project — no obligation.
Talk to an Engineer →Category · 01
Addressable fire alarm and fire-and-release control panels for commercial, industrial, institutional, and residential fire detection projects.
FW2105
Compact addressable control panel for smaller commercial and residential installations — single-loop, field-configurable.
FW2107
Full-size addressable panel that handles fire alarm plus suppression releasing (FM-200, CO₂, pre-action) in one enclosure.

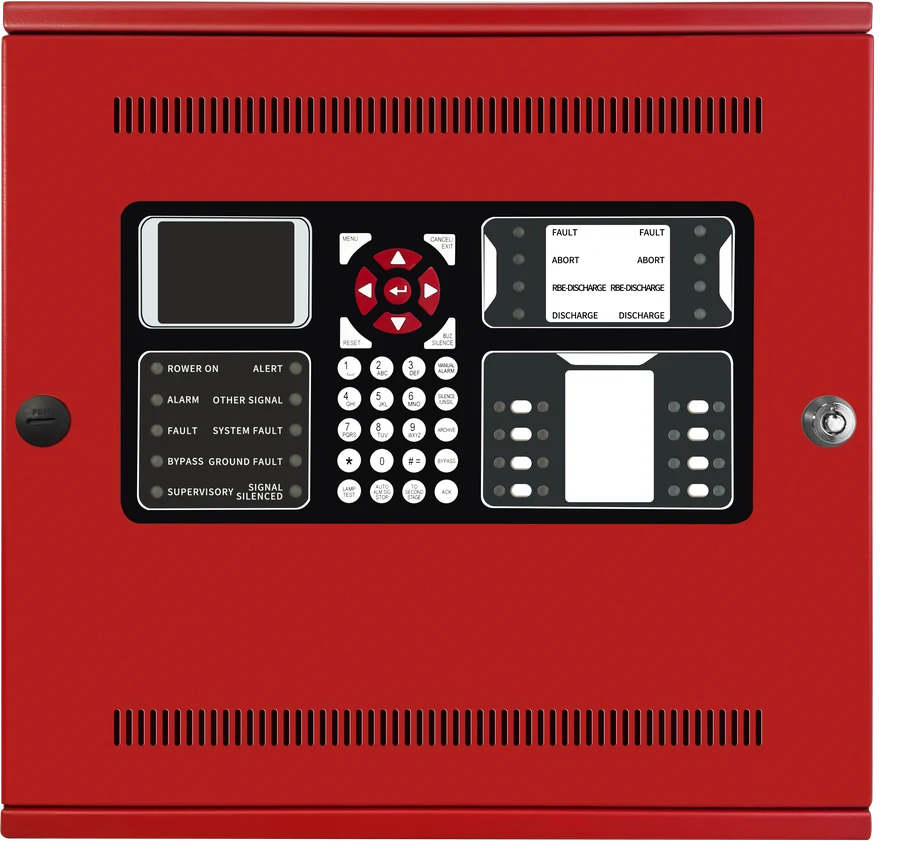

FW2107M
Compact version of the FW2107 for small protected spaces — full releasing functionality in a reduced footprint.

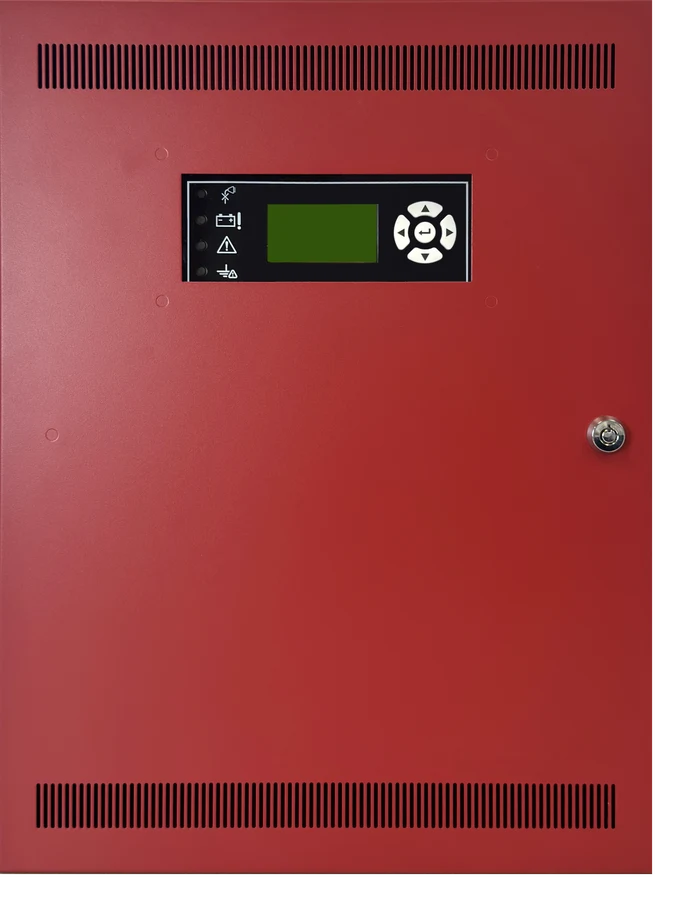

FW131
Adds eight Class A or B notification appliance circuits (3 A each) and four Form C relays. Listed to UL 864 10th edition and ULC-S527.
Category · 02
Addressable remote annunciators provide full system status and control from any code-required location in the building.
FW2121
Backlit LCD display with navigation keys — full event history, zone status, and system commands at the lobby or fire command center.

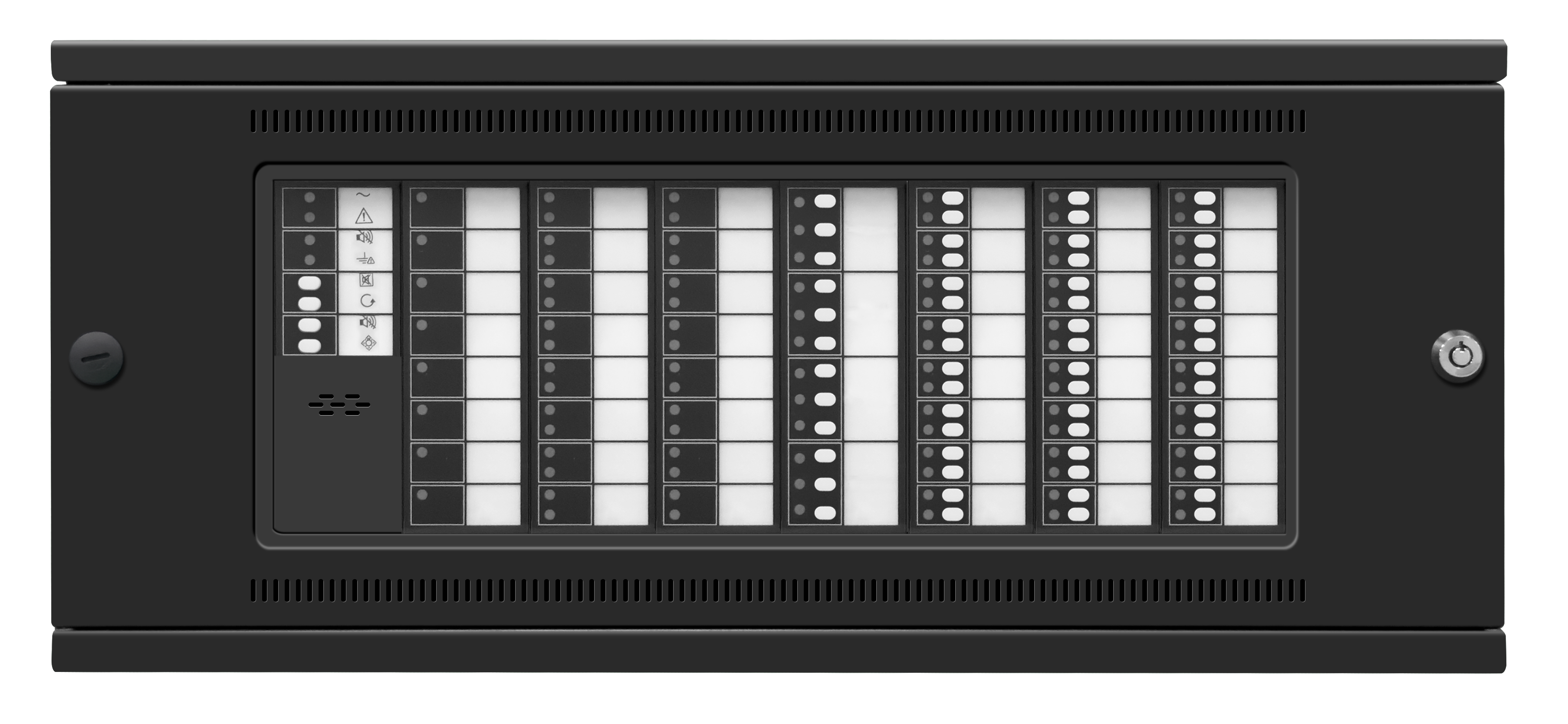

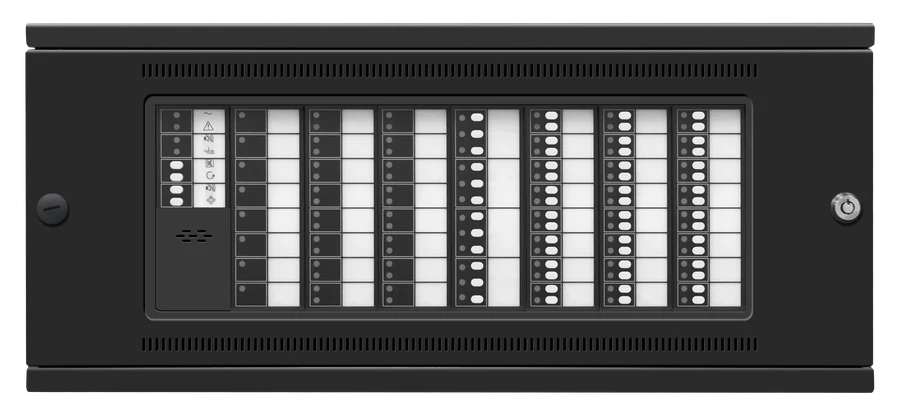

FW2129-H1
Holds up to 8 annunciation modules. System status shown by the FW2252-4S4L LED module (no LCD). Back box, windowed door, and two keys included; 10.5″ H × 24″ W × 2.76″ D.
FW2129-H2
Holds up to 16 annunciation modules. System status shown by the FW2252-4S4L LED module or FW2204 LCD display. Back box, windowed door, and two keys included; 18.4″ H × 24″ W × 2.76″ D.
FW2129-H3
Holds up to 24 annunciation modules. System status shown by the FW2252-4S4L LED module or FW2204 LCD display. Back box, windowed door, and two keys included; 26.26″ H × 24″ W × 2.76″ D.
FW2129-H5
Holds up to 40 annunciation modules. System status shown by the FW2252-4S4L LED module or FW2204 LCD display. Back box, windowed door, and two keys included; 42″ H × 24″ W × 2.76″ D.

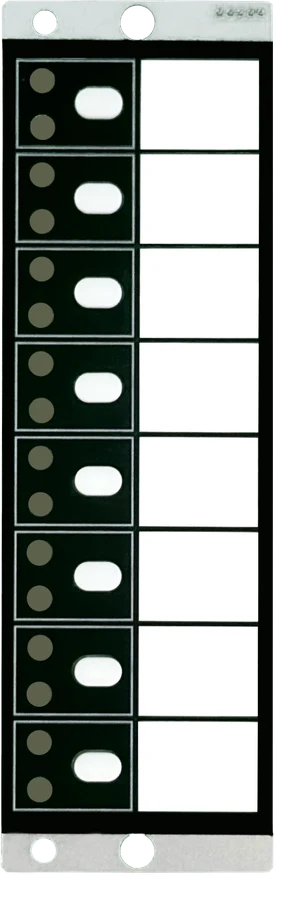

FW2252
Annunciation modules for the FW2129: 8 or 16 multi-colour LEDs, LED and button combinations, hand-off-auto controls, and blank covers. LED colours and button functions are programmed at the panel; installers print custom labels.
Category · 03

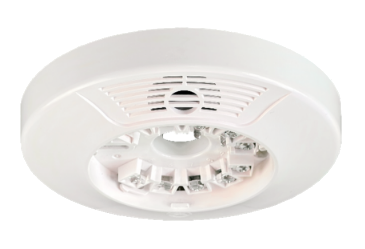

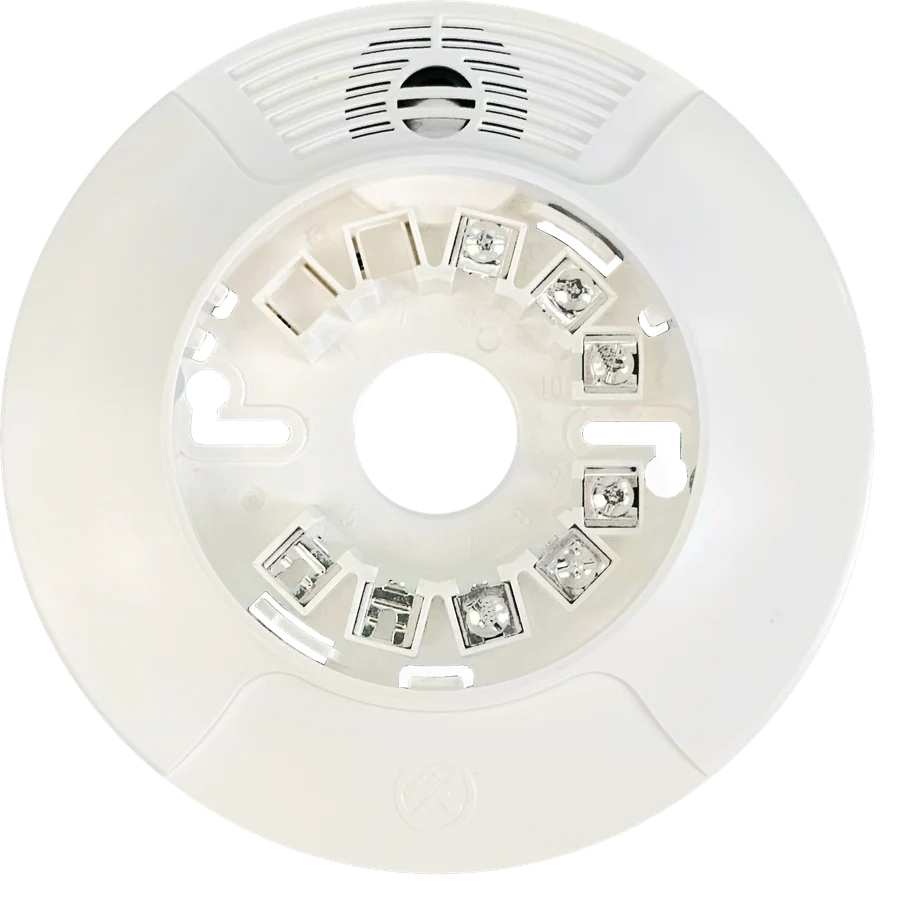

Addressable photoelectric smoke detectors, heat detectors, and sounder bases — slim profile, fast response, and clean aesthetic on any ceiling.

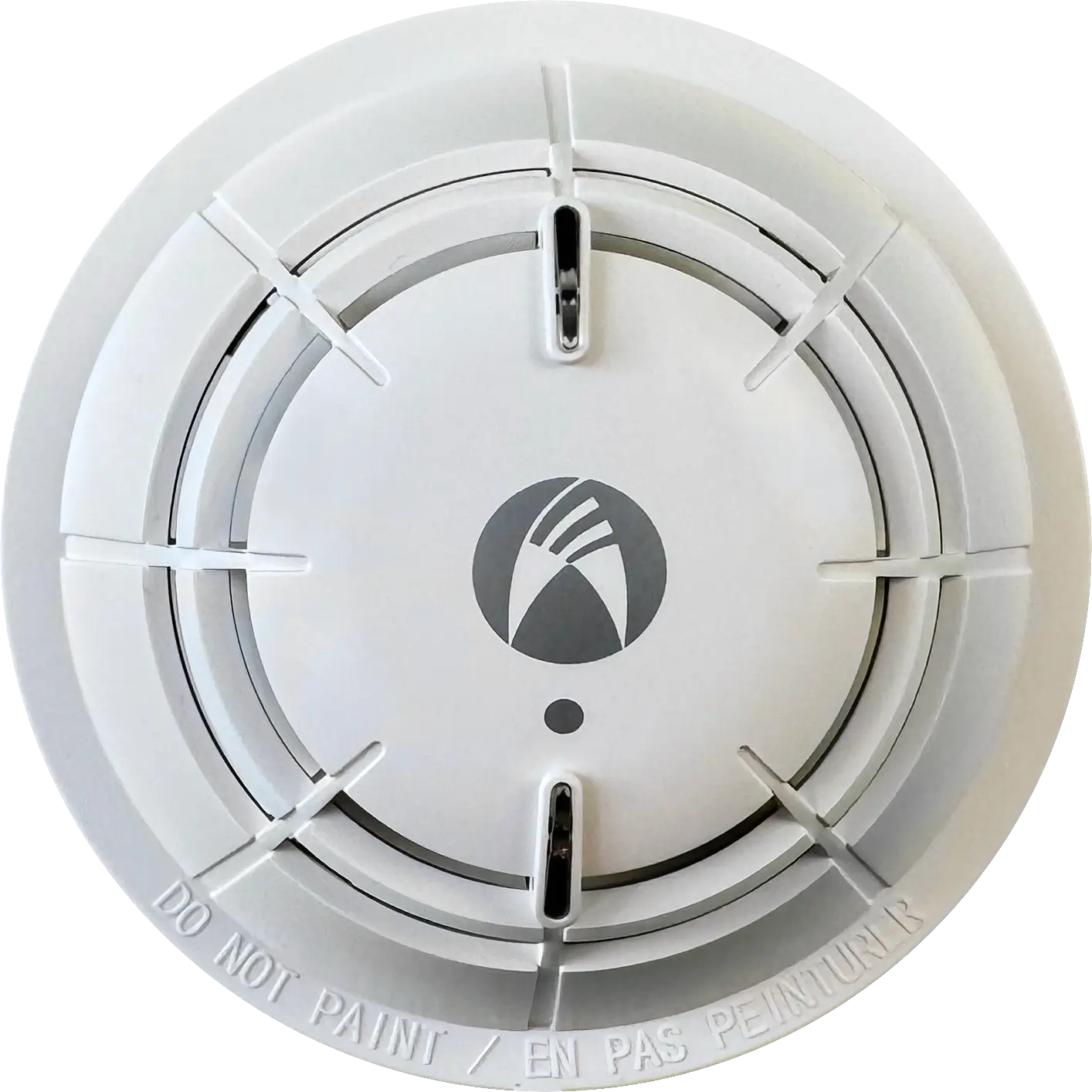

FW2511
Addressable photoelectric smoke detector with fast response and drift compensation.

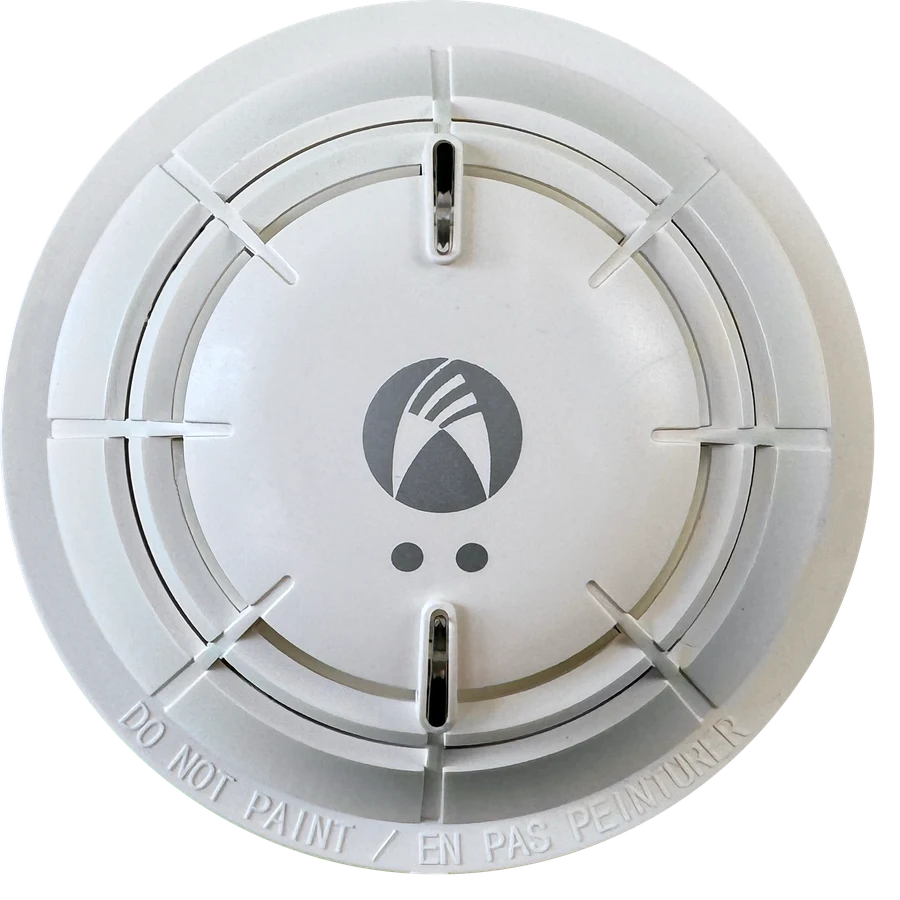

FW2521
Addressable heat detector — fixed-temperature and rate-of-rise, for kitchens, parking, and mechanical rooms where smoke detection isn’t suitable.

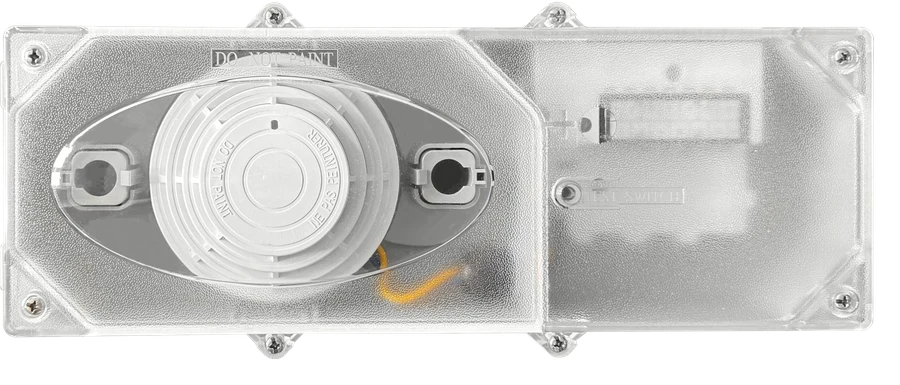

FW562 / FW562C
Ventilation duct smoke detector with air sampling tubes from 12 to 42 in. FW562 is UL 268A listed; FW562C is ULC-S529 listed. Connects to Series 2 panels through the FW2845 protocol converter.
Category · 04
Addressable pull stations for fire alarm initiation, and the full complement of release-system control switches for suppression installations.
FW2721
Addressable manual pull stations built from durable materials — long-lasting performance across commercial, industrial, and institutional sites.

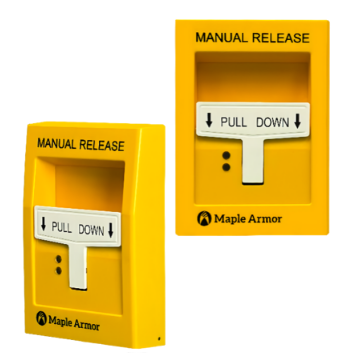

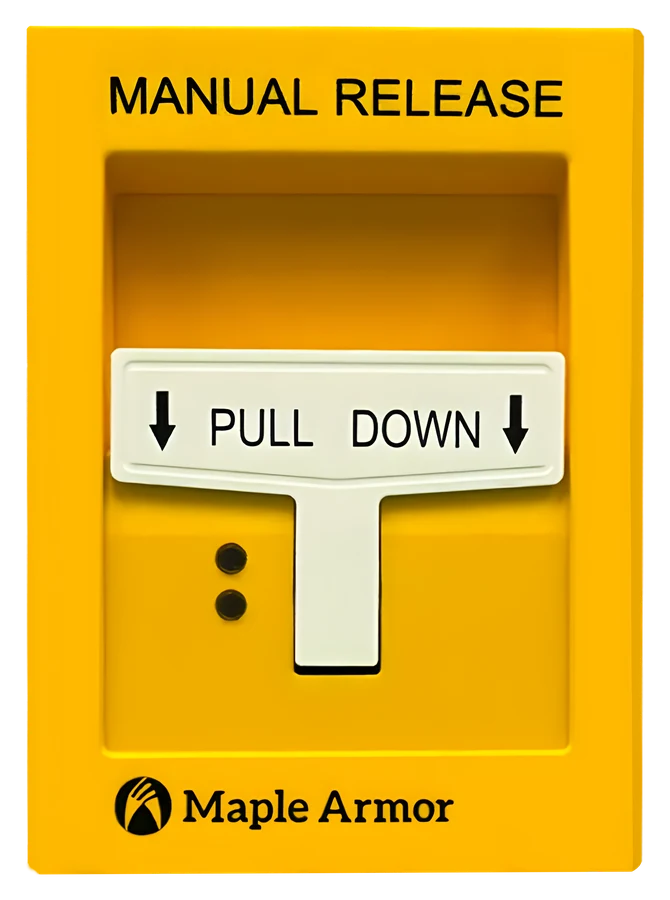

FW2731
Addressable manual release station for suppression systems — used to manually activate a release sequence.

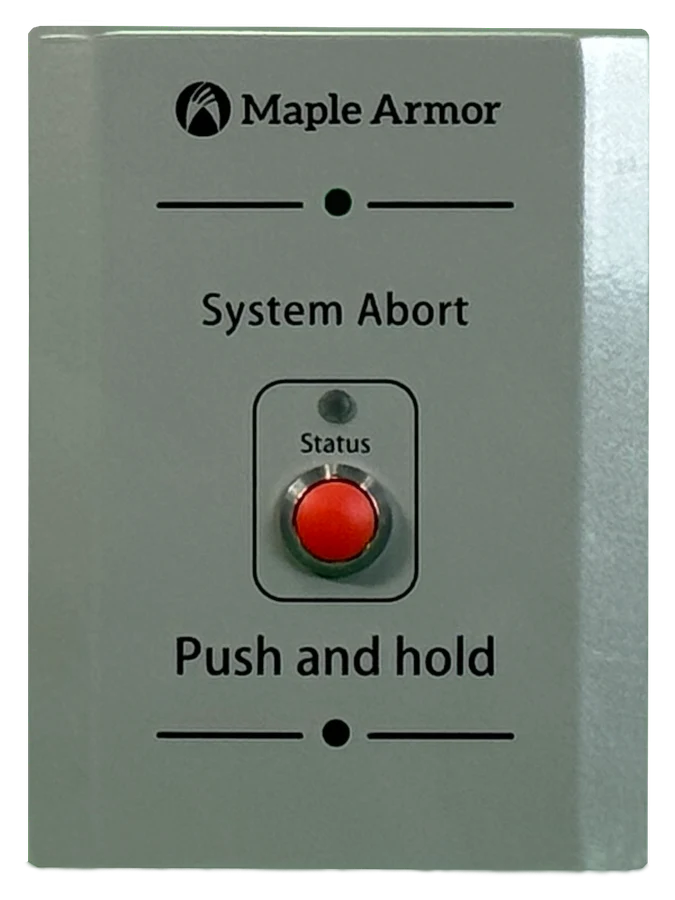

FW2732
Addressable abort switch — delays or stops a release sequence when activated.

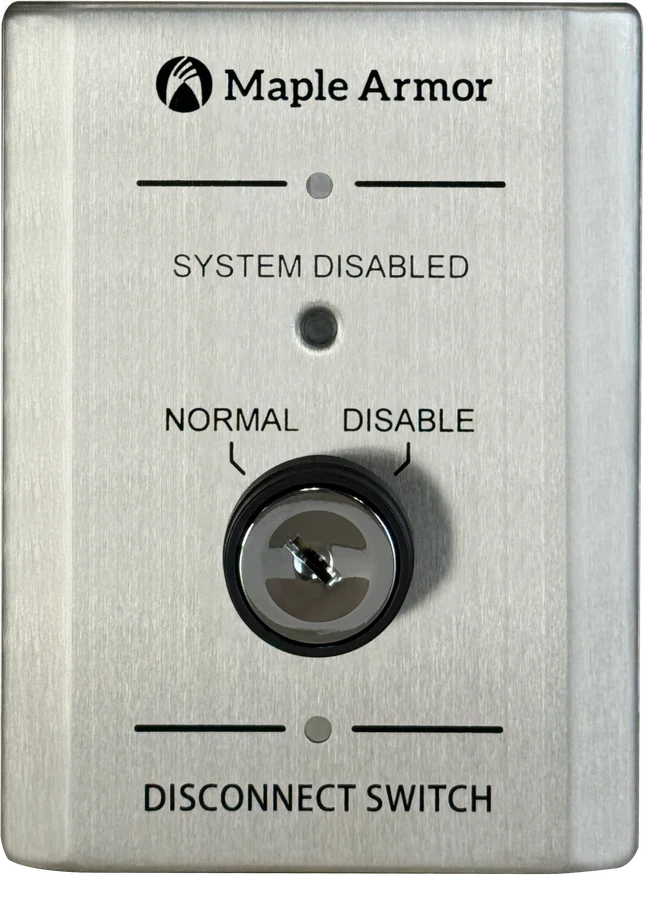

FW2733
Addressable disconnect switch — disables release output during service or testing.

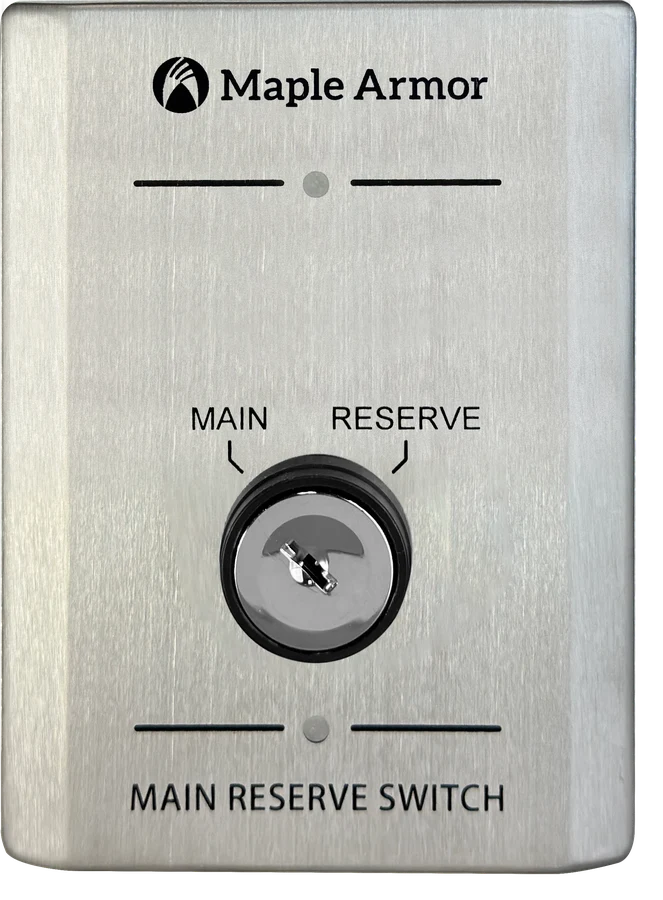

FW2734
Addressable main/reserve switch — transfers release activation between the main agent supply and the reserve bank.

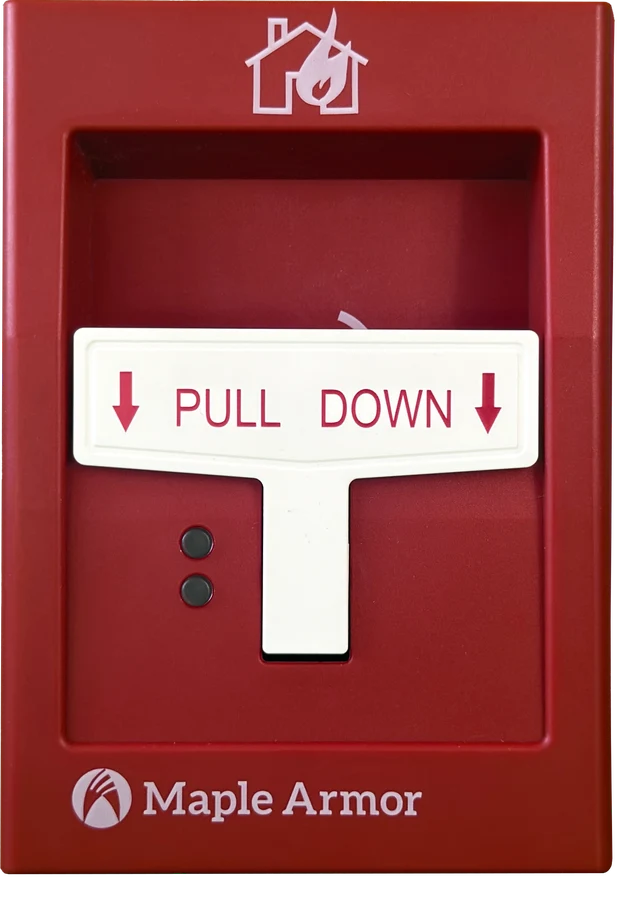

FW2722
Addressable two-stage manual pull station; alarm and alert LEDs show the stage.

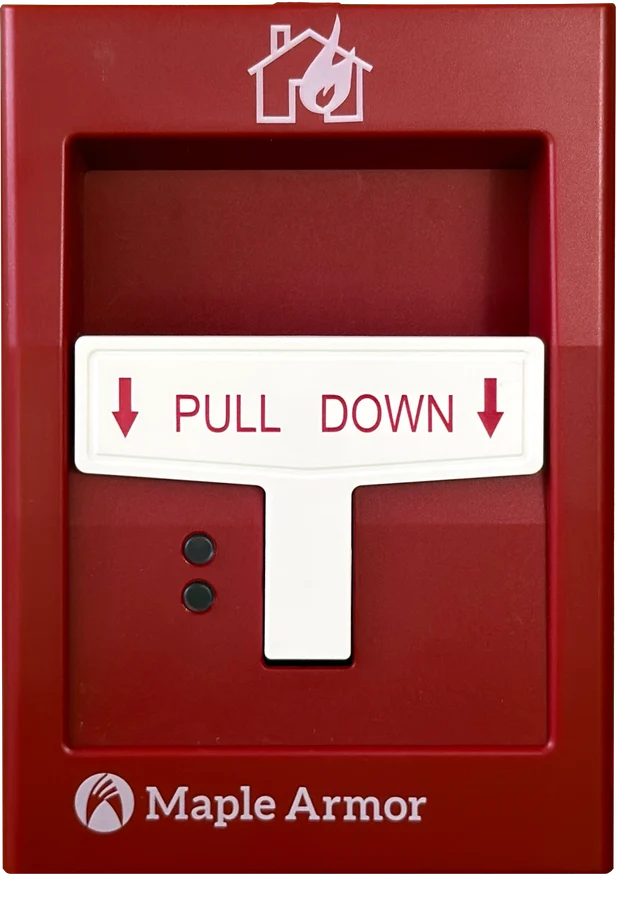

FW2723
Addressable single-action, single-stage manual pull station.
Category · 05
The full Series 2 module family: input, output, relay, zone, isolator, and release modules — field-programmable and addressable on the FireWatcher loop.

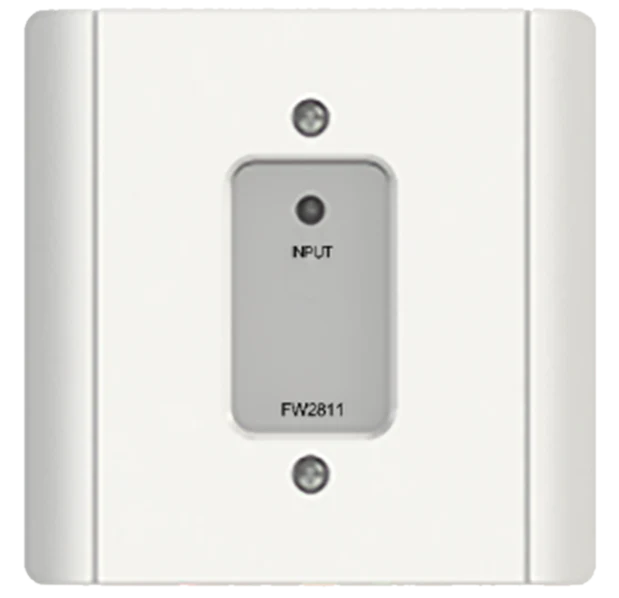

FW2811
Single-input monitor module for supervising waterflow, tamper, and other dry-contact devices.

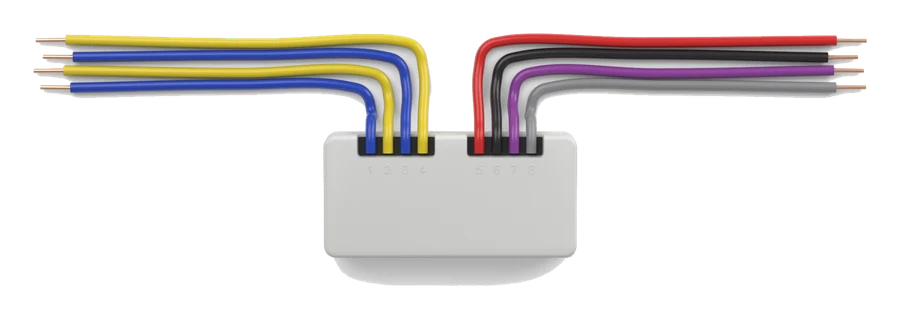

FW2811M
Compact single-input monitor module — fits inside a standard 4-square box behind a device.

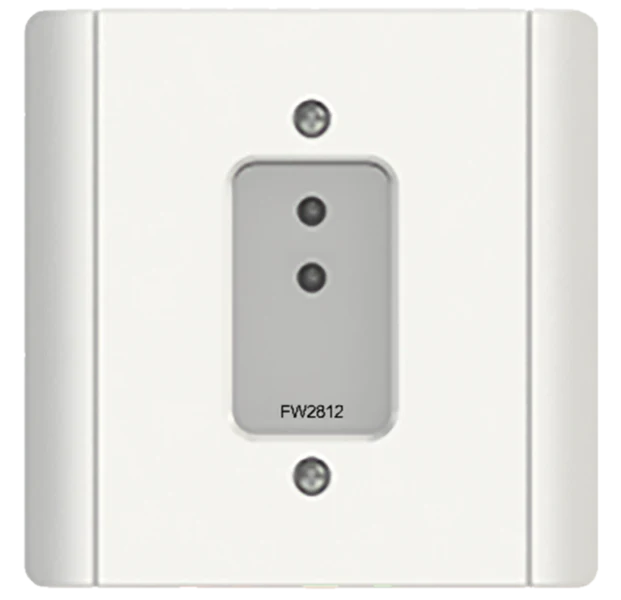

FW2812
Two-input monitor module — supervises two independent initiating devices from one loop address.
FW2821
Addressable supervised output module for notification appliance circuits.

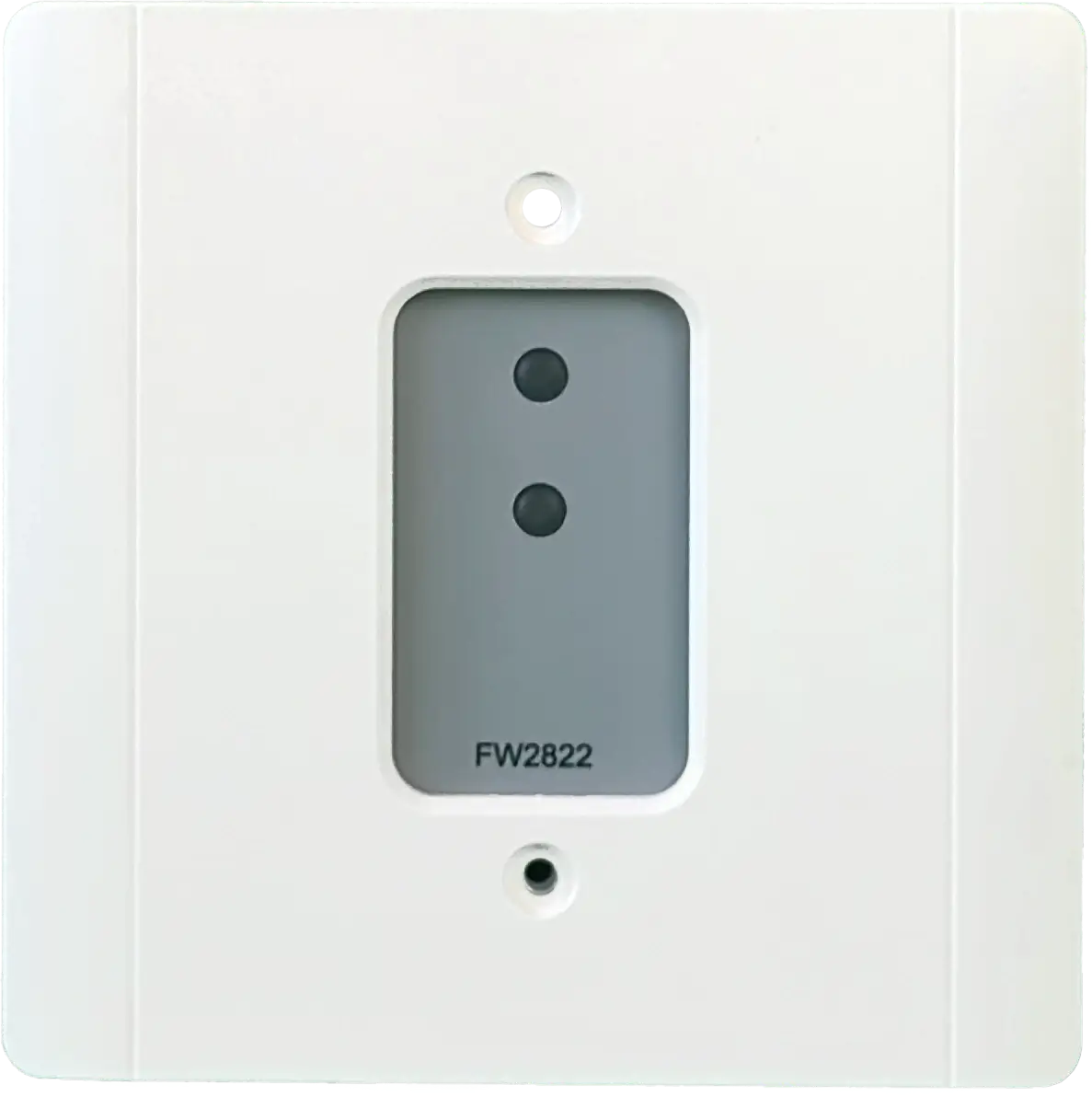

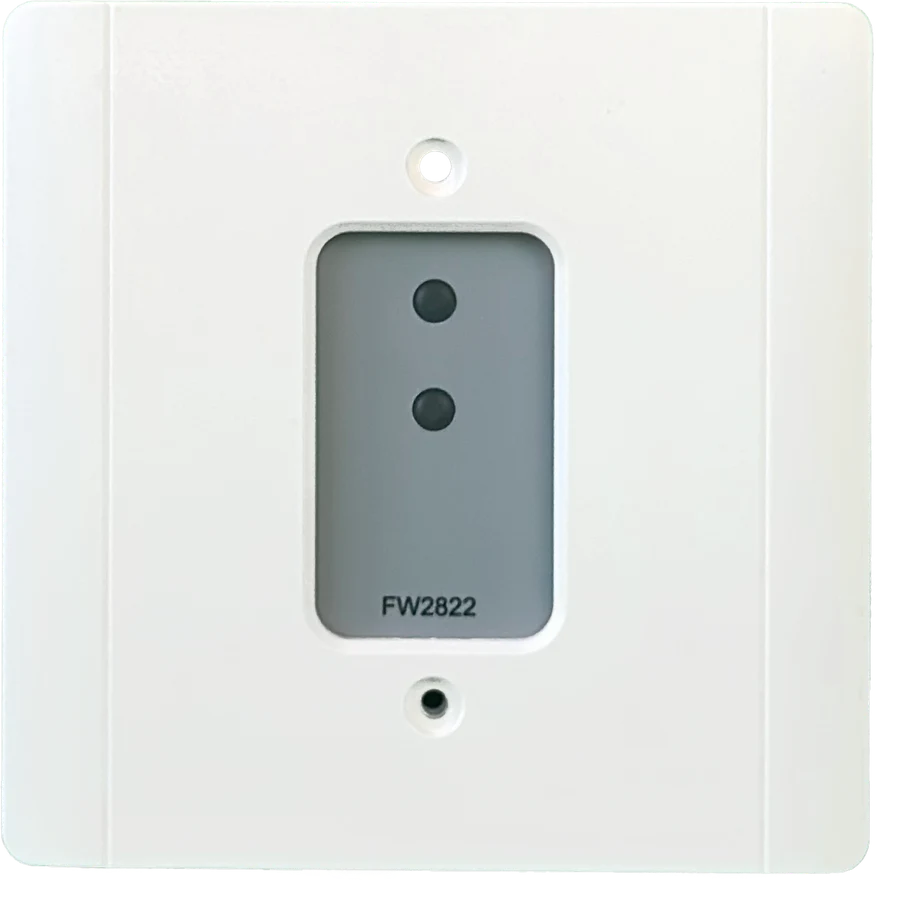

FW2822
Addressable releasing module — drives the release solenoid on a suppression system from the FireWatcher loop.

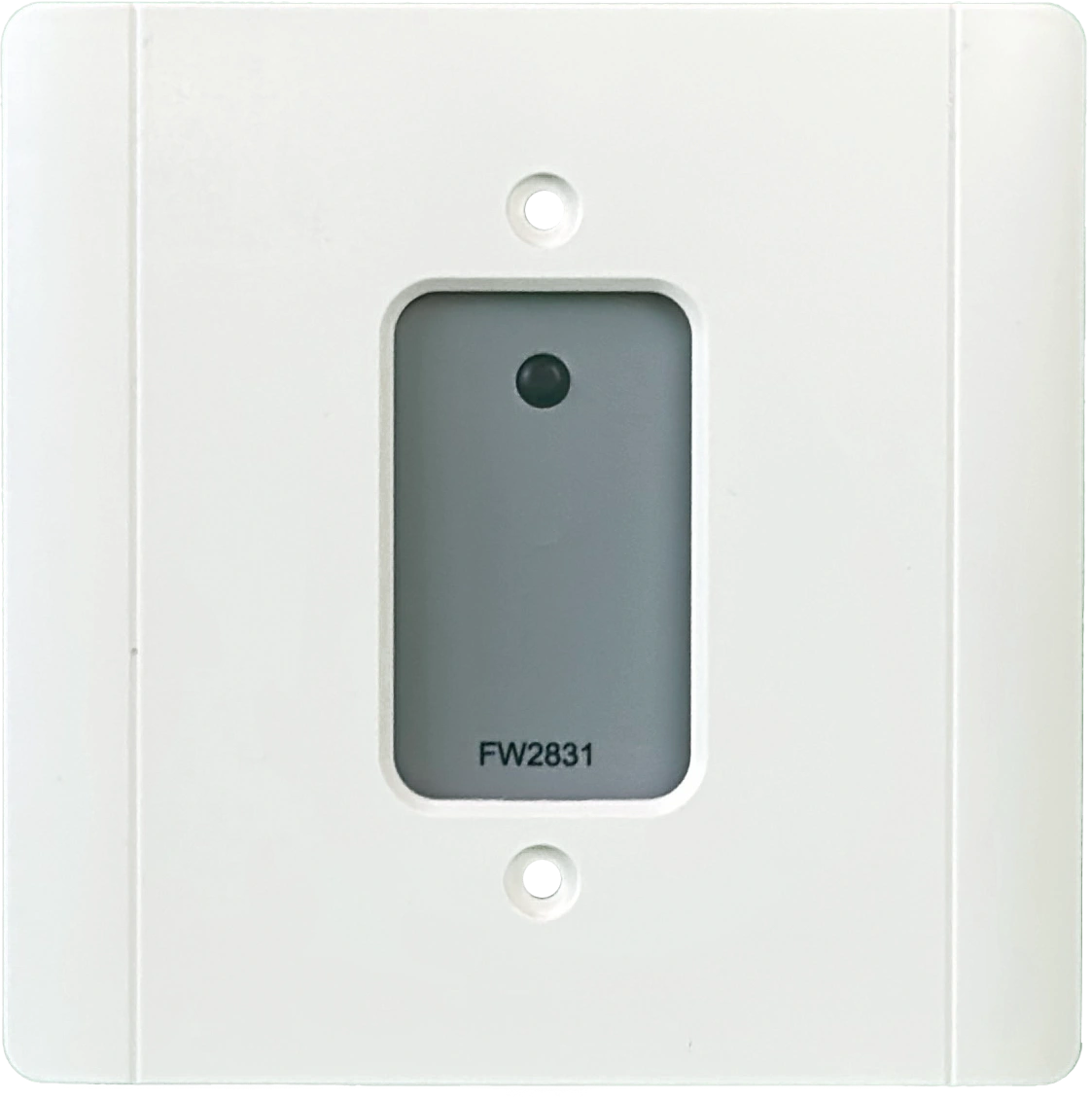

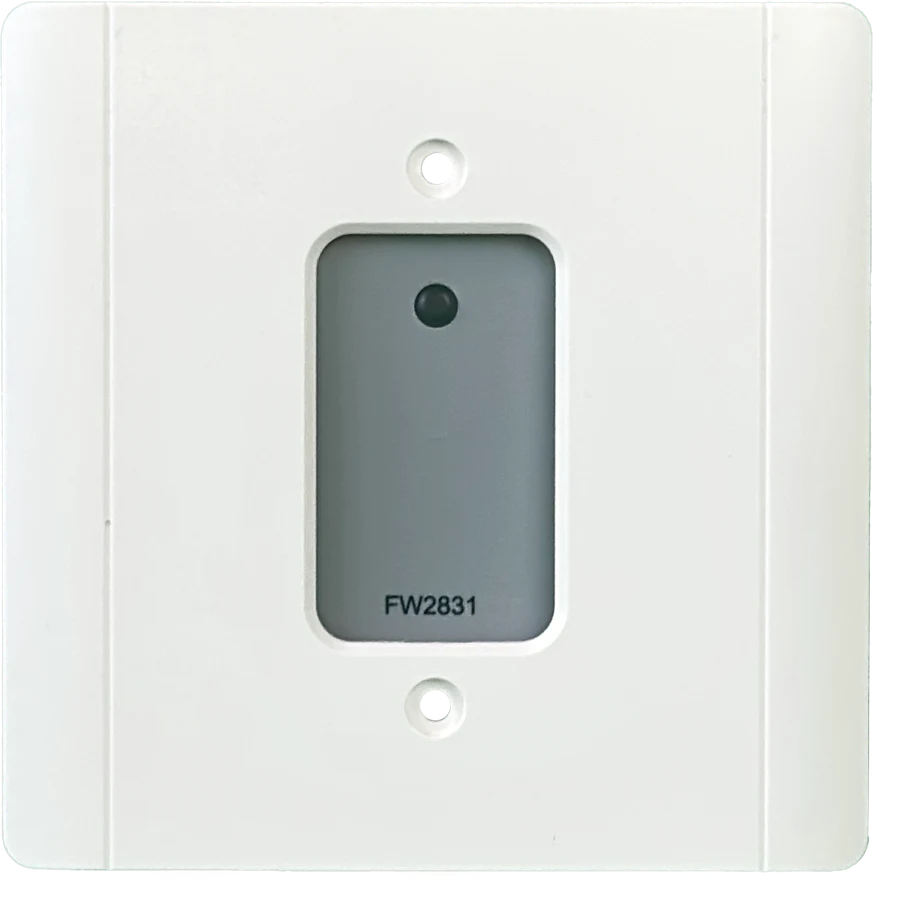

FW2831
Addressable relay module for interfacing with HVAC shutdown, elevator recall, door hold-open, and other auxiliary functions.

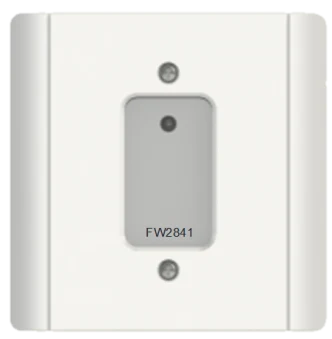

FW2841
Interface module for integrating conventional zones of 4-wire smoke detectors into the addressable loop.

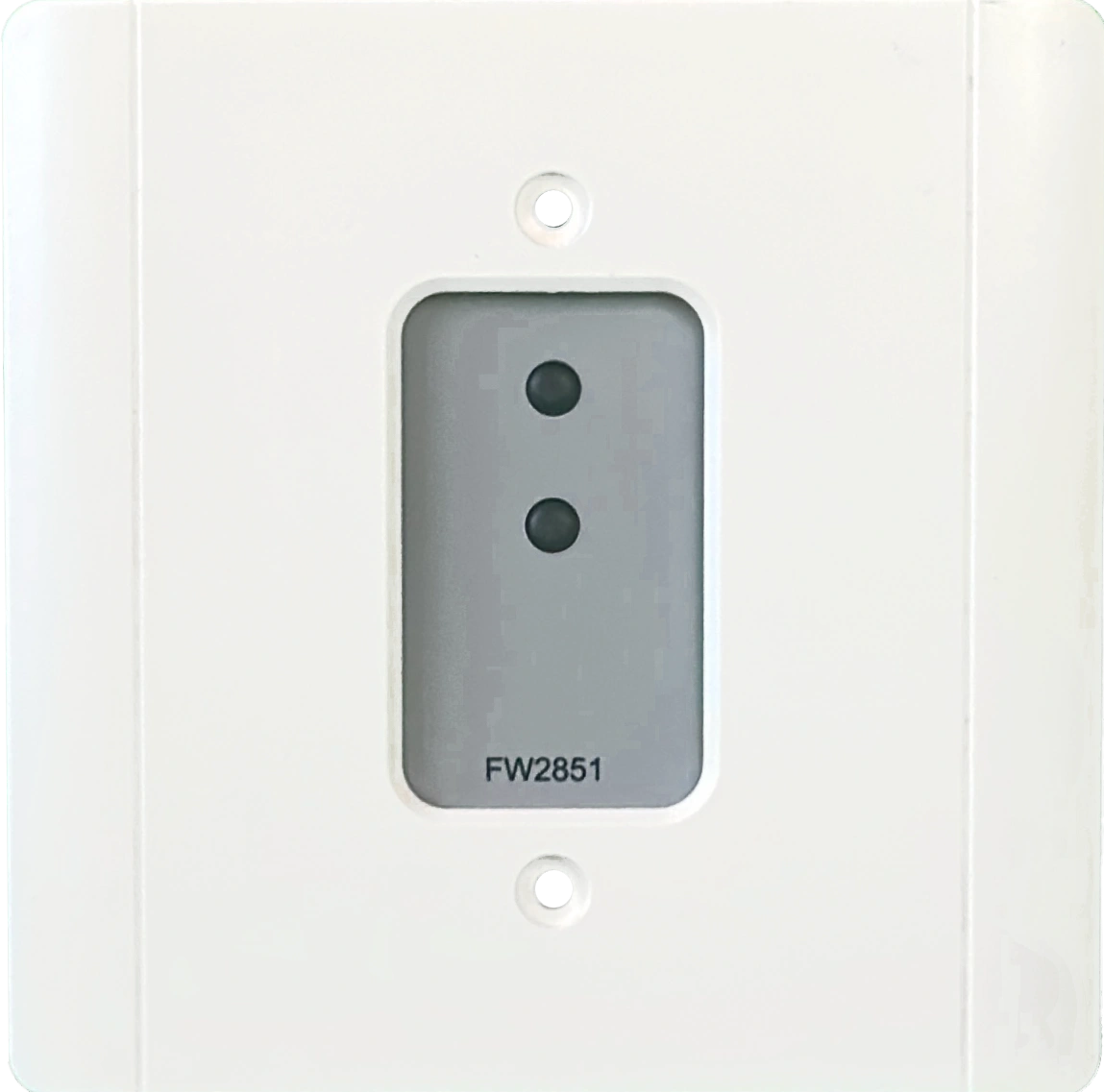

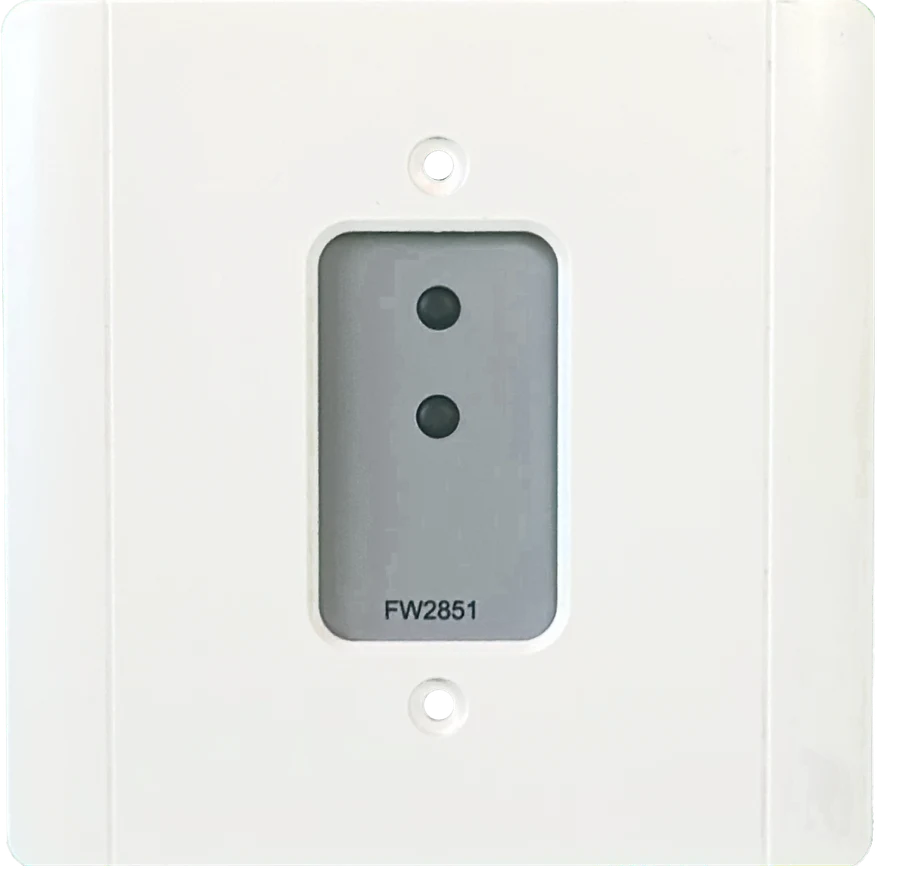

FW2851
Short-circuit isolator module — protects the remainder of the loop when a single short occurs, per CAN/ULC-S524.

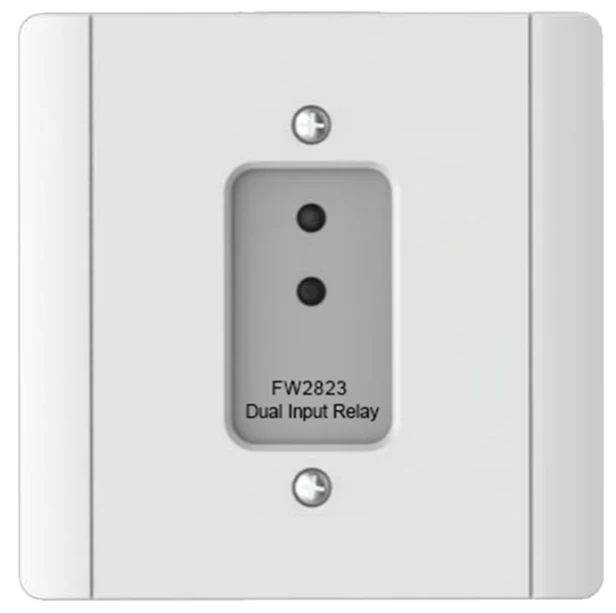

FW2823
Two dry-contact inputs (alarm, supervisory, trouble, or monitor) and two NO/NC relay outputs from one loop address. Mounts on a standard 4-inch square box.

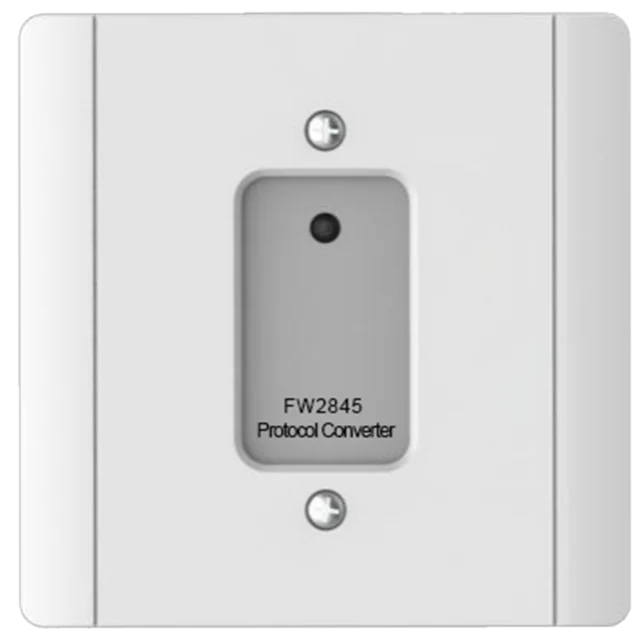

FW2845
Connects one FW562 or FW562C duct smoke detector to the FW2105 or FW2107 panel. Uses one loop address.

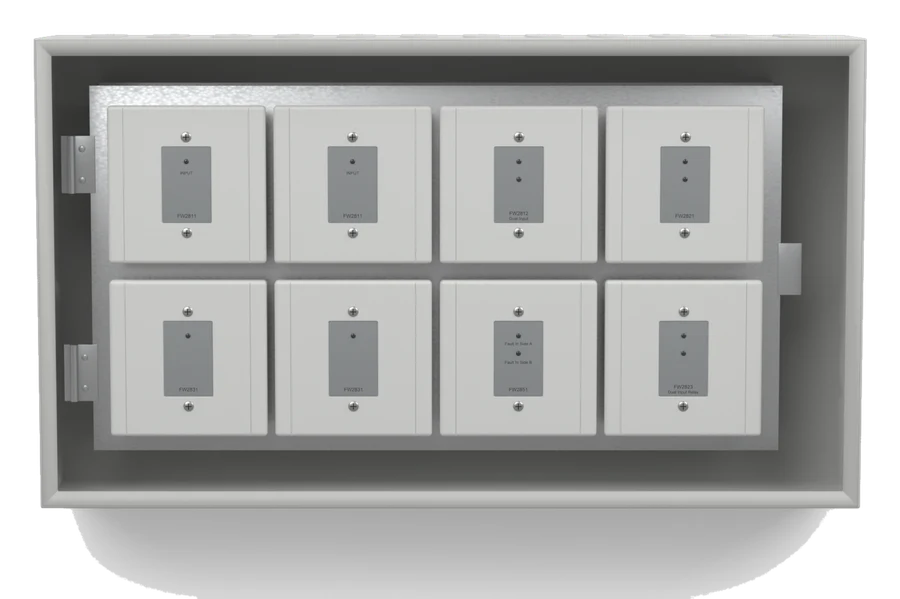

FW434 / FW435
Cabinets for grouping modules in one place: FW434 holds up to 16 modules, FW435 up to 8. Door, two mounting plates, and back box included; dark grey or red.
Category · 06
Horn, strobe, and combination notification devices — ceiling and wall mount, with low-frequency and mini-horn variants for every application.
FW2961
Code-compliant audible and visual notification appliance for general commercial, industrial, and institutional spaces.

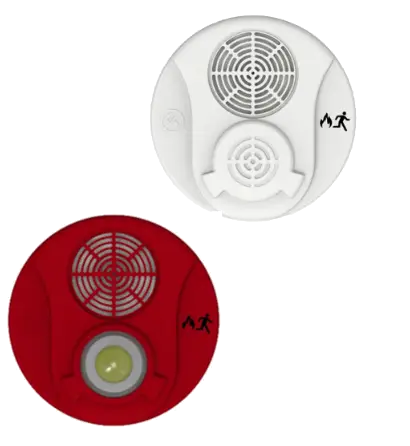

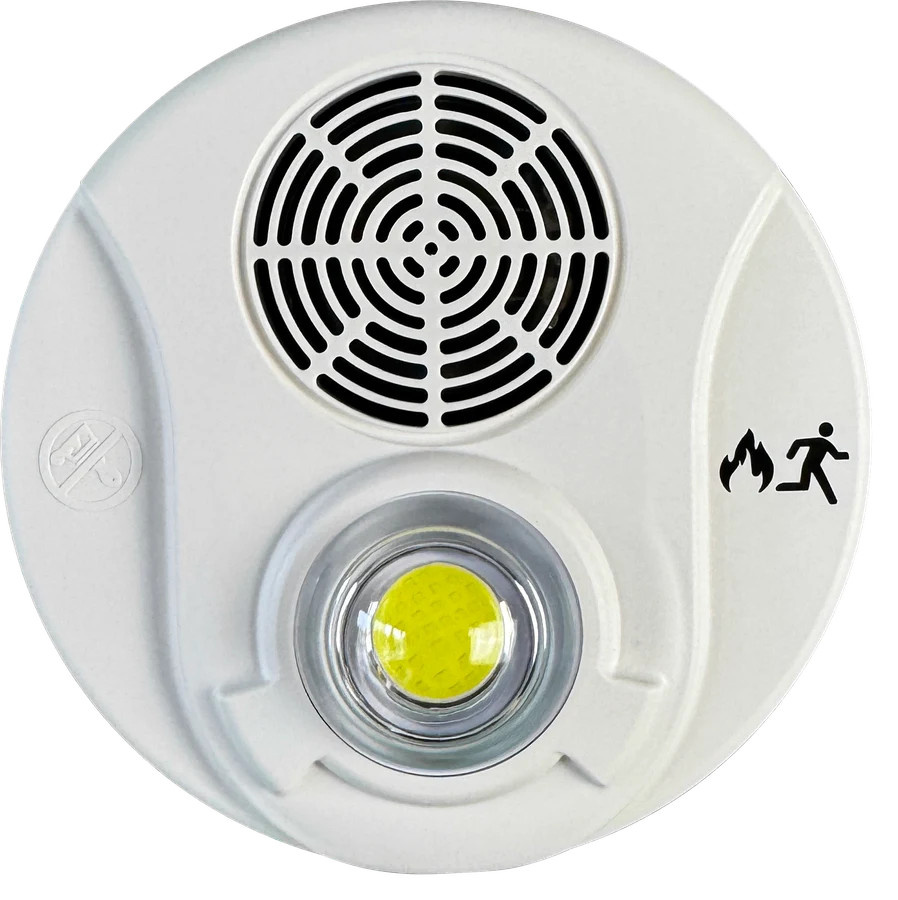

FW2963
520 Hz low-frequency notification appliance for sleeping-area installations per NFPA 72 — hotel rooms, dormitories, residential suites.

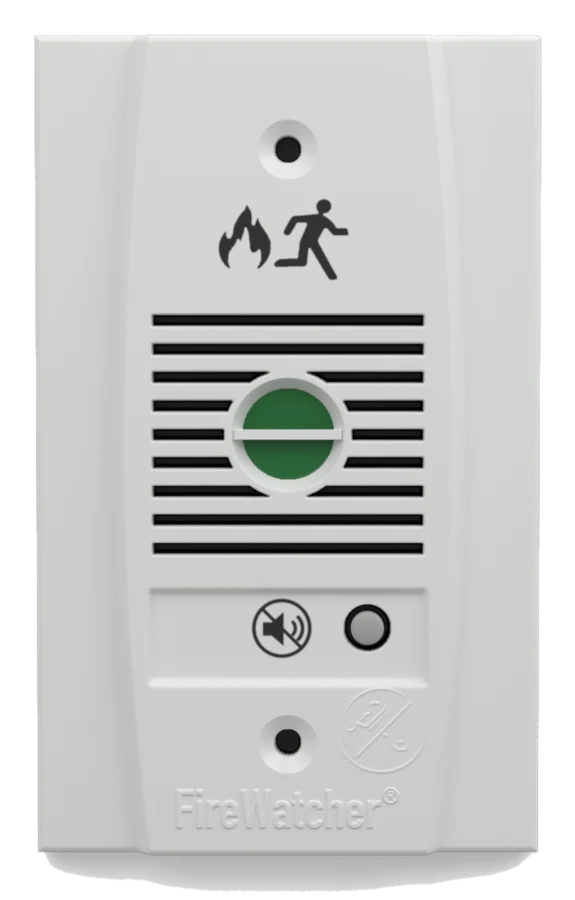

FW2972
Compact addressable horn — in-suite notification where a full combination appliance isn’t required.

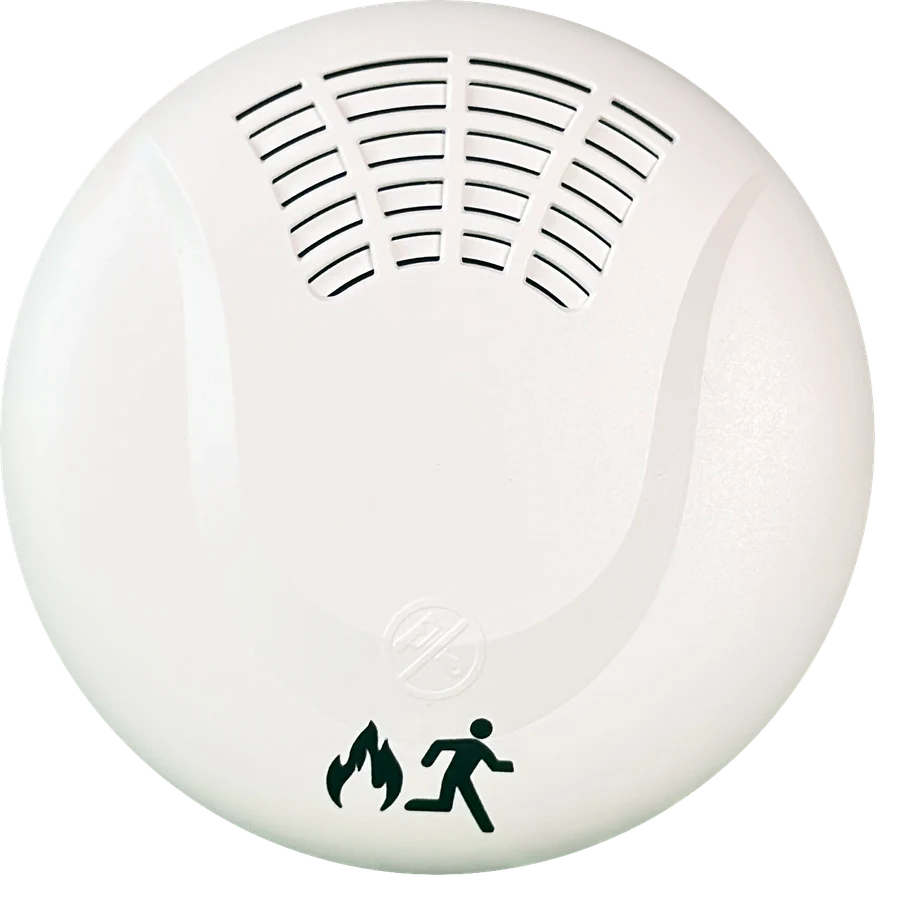

FW2971
Wall or ceiling horn for conventional or addressable circuits, red or white. Seven selectable output levels and six tone patterns.

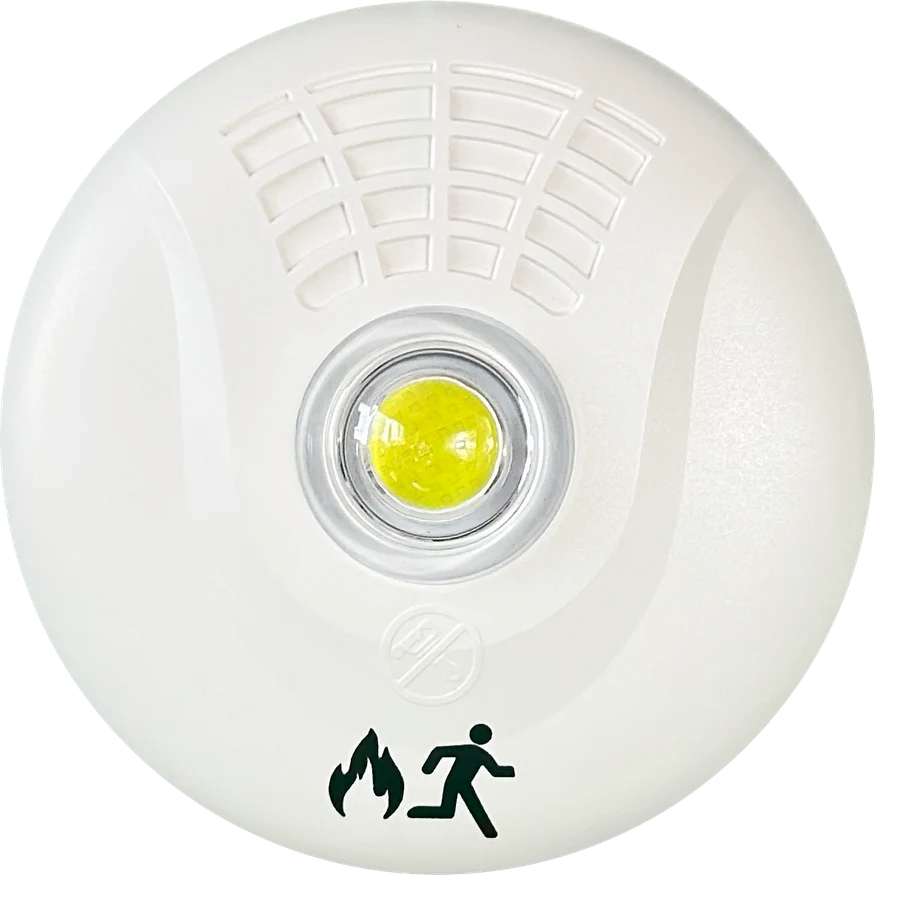

FW2981
Wall or ceiling strobe for conventional or addressable circuits, red or white, with six selectable intensities.

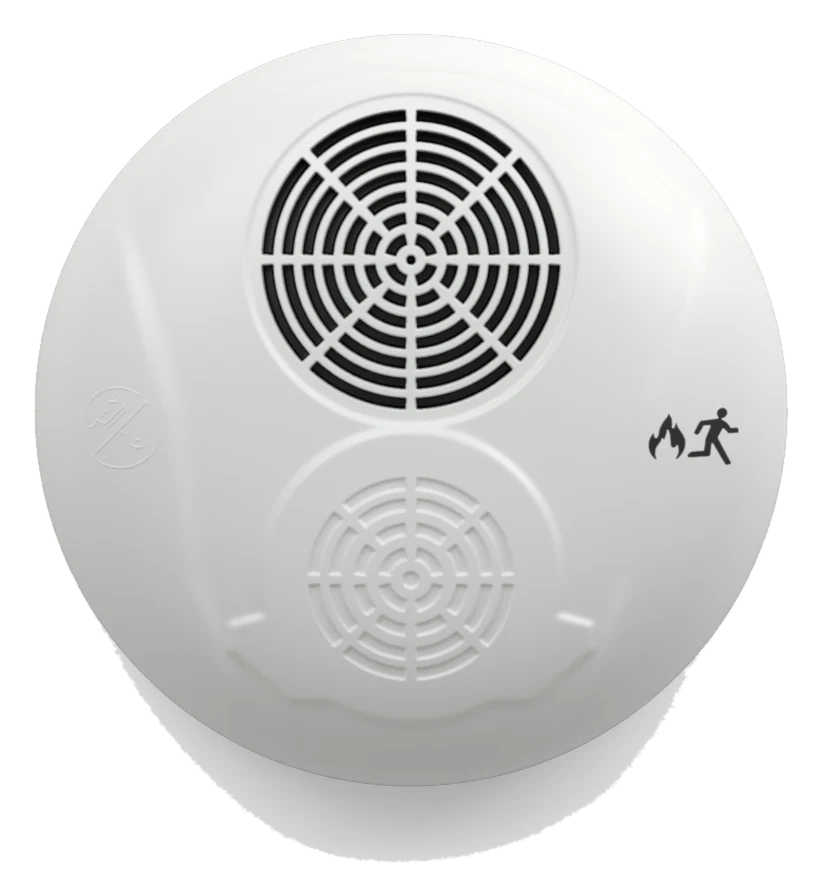

FW2973
520 Hz low-frequency horn without strobe, red or white, for sleeping areas.
Category · 07
Bases, boxes, tubes, end-of-line devices, keys, and the handheld programmer that complete a Series 2 installation.
| Model | Description | Datasheet |
|---|---|---|
| FW2411 | Handheld programmer for setting Series 2 device addresses | — |
| FW2501 / FW2502 | 4-inch and 6-inch detector bases | See datasheet |
| FW2701 | Surface-mount box for pull stations, red | See datasheet |
| FW800 / FW801 | Module surface box, standard and deep | See datasheet |
| FW2900R / FW2900W | 5.5-inch base for notification appliances, red or white | — |
| FW2901R / FW2901W | 6.1-inch base for notification appliances, red or white | See datasheet |
| FW561-ST-12 to -42 | Air sampling tubes for the duct detector: 12, 18, 24, 36, and 42 in. | See datasheet |
| FW561-RI | Remote LED indicator | See datasheet |
| FW421 / FW422 | End-of-line 10k resistor (pack of 10) and end-of-line plate | See datasheet |
| FWMMB | Mini module bracket | See datasheet |
| FW2131 | Battery box | — |
| FWPK / FWMRK | Panel key and manual station reset key | — |
