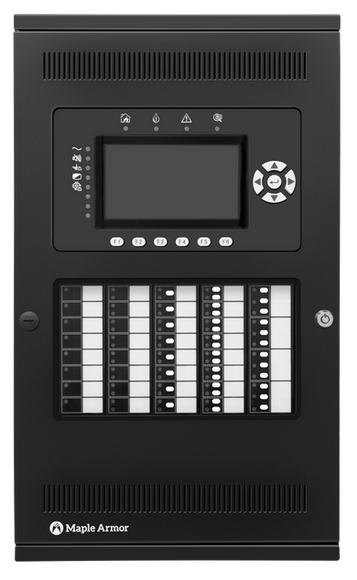

FW2105
ADDRESSABLE FIRE ALARM CONTROL PANEL
The Series 2 FW2105 is a modular addressable fire alarm control panel designed to meet the requirements of a wide range of small to medium size fire alarm systems and fits standalone application and multi-panel networks.
It features a digital signal processor-based design, fully configurable from the front panel with password protection. The standard FW2105 control panel supports one Signaling Line Circuit (SLC) and 4 Notification Appliance Circuits (NACs). It is equipped with 4 form C dry relay contacts dedicated to Fire Department connections and has 10 amps of power.
It supports up to 9 Addressable Signaling Line Circuits (SLCs), accommodating up to 252 addressable devices or
points per SLC. Can support up to 12 Notification Appliance Circuits (NACs). 4 onboard Form C dry contact relays. The FW2105 is compatible with the Series 2 Maple Armor devices, and it meets the requirements of UL 864, and CAN/ULC-S527.
ADDRESSABLE FIRE ALARM PANEL
This system supports up to 9 SLC loops and 2,200 addressable points, with 4 onboard NAC circuits (expandable to 12) and a 10A NAC current capacity. It is networkable with up to 99 panels in Class B or 31 in Class A, and features a 7-inch, 8-line LCD display, 40 onboard LED zone indicators, and robust event storage (4,000 alarms, 12,000 other events). Additional highlights include battery support (hosts 2x 18Ah in case, charges up to 55Ah), multiple wiring knockouts, proper ventilation, and flexible mounting options.
Capabilities
Compliance
UL/ULC Listed
• 8-line colored 7” LCD with 800 X 480 resolution
• 12 LED indicators, making it a highly intuitive fire alarm
interface with 6 auxiliary function keys
• Up to 9 signaling line circuits (SLC), Class A or Class
B. each supports 252 intelligent devices
• Supports FW Series intelligent detectors, manual
stations, and modules
• Up to 12 notification appliance circuits (NAC), Class A
or Class B
• Automatic addressing function allowing the panel to
sequentially assign addresses
• Programmable via PC configuration software or Field
programmable through front panel. N
• Modular design for custom system configurations.
• USB port on board for programming and firmware
upgrade.
• Supports remote annunciators’ network for wide
system configurations and applications.
• Form C dry relay contacts dedicated for Alarm, Trouble,
Supervisory, and Monitor.
• Supports positive alarm sequence to avoid false alarms
• Configurable for Two Stage operation
• Supports RJ45 and RS232 interface for third-party
monitoring software
• Four-levels of password protection with field-
programmable definitions enable the installer to
determine which functions are accessible at each
password level
• Two separate event history logs. Includes a 1000 alarm
event Log and 5000 non alarm event log.
